Quick Details
Condition: New
Place of Origin: Jiangsu, China (Mainland)
Brand Name: HuaZu
Model Number: HZ-L100
Machine Type: Beading Machine
Raw Material: Aluminum Profile
Material / Metal Processed: Aluminum
Power: Cnc
Automation: Automatic
Extra Services: Slotting & Notching
Certification: CE
After-sales Service Provided: Engineers available to service machinery overseas

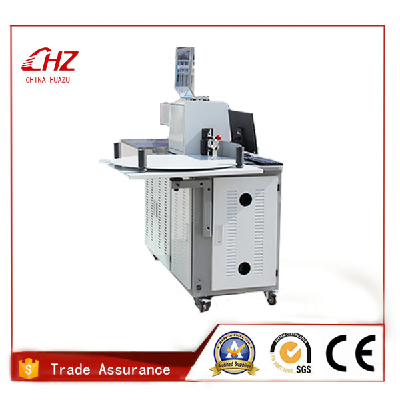

Product name: HZ-L100 Aluminum Frame And Bending Machines
Material thickness: 0.3-1.5mm
Feeding speed: 15m/min
Precision: 0.05mm
Letter size: ≥100mm
Material width: 20-128mm
Max power: 1.1KW
Rated Voltage: AC220V/50HZ
Specification: 1500*650*1270mm
Weight: 285kg
Packaging & Delivery
| Packaging Details: | HZ-L100 Aluminum Frame And Bending Machines
Packed with wooden case
Machine size: 1500*650*1270mm |
|---|
| Delivery Detail: | 10-15 wroking days |
|---|
Specification:
Item | Parameter |
Specification | 1500*650*1270mm |
Feeding speed | 15m/min |
Thickness | 0.3-1.5mm |
width | 20-128mm |
Letter size | ≥100mm |
Max power | 1.1Kw |
Weight | 285Kg |
Rated Voltage | AC220V/50HZ |
Air pressure | 0.6-0.8MPa |
Precision | 0.05mm |
Working interface | English/Chinese |
Material | Aluminum,Iron sheet |
File format | plt/ai/dxf |
Features:
1. Rolling feeding with guiding mechanism ,high precise feeding, finished product length coincides with the original one’s, the error is close to “0”.
2. High degree of forming, coincide with the various kinds of precision cutting of panels 99%;
3. Long tool working life, low slotting cost, imported slotting tool is good at cutting high hardness material and it can be used for 10000 times;
4. Precise and controlled groove depth- it controls the depth of groove by numerical control axis and this meets different feeding frequency of different material rolling and skidding.
5. Intelligent compensation for bending rebound- Inside set with intelligent compensation system and professional parameter database controlled by HZ-Auto Bend CNC system developed by Huazu.It can assure forming precision for all kind of material.
Our Services
Before-sale:
1, All enquires will be replied within 8hours. 7D/24H service. Please feel free to contact us with email or TM.
2, Strong technical team and Professional sales.
3, We can provide train in our factory.
After-sale:
1, All the machine will be tested and adjusted before shipping. You can operate it directly.
2, 12months warranty, we are responsible for offering the fittings free of charge during the guarantee period.
3, After the guarantee of quality period, the parts required to repair or change shall be paid.
About us:
Changzhou Huazu Optics & Electronics Tech Co., Ltd. is located in Longcheng Science and Technology Park, Tianning Economic Development Zone, Changzhou, Jiangsu, China. We are a high-tech enterprise dominated by digital control system of CNC system and optical-mechanical-electrical automatic equipment, integrating STES research and development, manufacture and technical service as one.
We are one of the biggest manufacturers in China or even in the world with bold innovation, strong technical force and professional technical experts. In order to meet the market's demand, after many years of research, we have successfully developed some specialized machines used for the automatic fabrication of light letters: Automatic Channel Letter Bending Machine, Numerical Control Channel Letter Slotting Machine, Electric Channel Letter Curling Machine, Advertising Engraving Machine, Channel Letter Laser Welding Machine, Channel Letter Laser Cutting Machine, etc.
Automatic Channel Letter Bending Machine and Numerical Control Channel Letter Slotting Machine are our flagship products. Because of different materials of channel letters, those machines can be divided into Aluminum Automatic Channel Letter Bending Machine, Stainless Steel Automatic Channel Letter Bending Machine, Multifunctional Automatic Channel Letter Bending Machine, Professional Numerical Control Channel Letter Slotting Machine, etc. Besides, we have developed a series that consist of four main types including kinds of models. In the future, we will continue to keep step with the needs of the market and constantly develop more powerful bending devices and other specialized advertising equipment.
