Quick Details
Application: Laser Marking
Condition: New
Laser Type: Fiber Laser
CNC or Not: Yes
Cooling Mode: Air Cooling
Graphic Format Supported: AI, PLT, DXF, BMP, DST, DWG, LAS, DXP
Place of Origin: Jiangsu, China (Mainland)
Brand Name: HuaZu
Model Number: GEER-FM10B
Power(W): 10W
Certification: CE, SGS
After-sales Service Provided: Engineers available to service machinery overseas
Max output laser power: 10W
Laser wavelength: 1064nm
Beam quality(M2): 1.4-1.8
Laser repetitive frequency: 20-100KHz
Adjustable power range: 10-100%
Marking line speed: ≤7000mm/s
Marking line width: 0.01-0.2mm
Repetitive accuracy: ±0.001mm
Power consumption: 500W
Packaging & Delivery
Packaging Details: | GEERFM10B fiberlaser marking machine for horologe Sell In Ireland Packed with wooden case |
---|
Delivery Detail: | 10-15 wroking days |
---|
Specifications

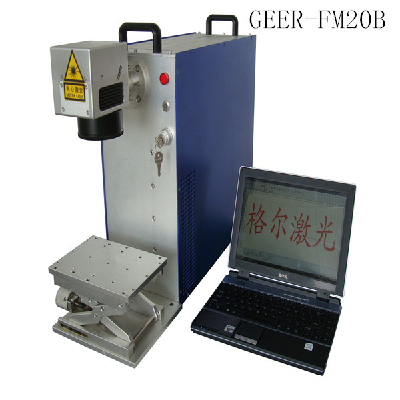

fiberlaser marking machine for horologe Sell In Ireland
without any maintenance
CE
deliver on time
high quality
Parameters:
Item | Parameters |
Max output laser power | 10W |
Laser wavelength | 1064nm |
Beam quality(M2) | 1.4-1.8 |
Laser repetitive frequency | 20-100KHz |
Adjustable power range | 10-100% |
Marking range | 100mm×100mm [other range is optional] |
Marking line speed | ≤7000mm/s |
Marking line width | 0.01-0.2mm |
Min character height | 0.2mm |
Repetitive accuracy | ±0.001mm |
Power consumption | 500W |
Power supply | 220V 50Hz/60Hz |
Dimension(length*width*height) | depend on model |
Cooling mode | Air
|
Features:
1.Beam quality of Fiber laser marking machine is better than traditional solid-state laser marking machine, fundamental mode (TEMOO) output, focusing spot diameter: 10um, the divergence angle is 1/4 of the semiconductor pump laser, especially suitable for precise and fine marking.
2.The electro-optical conversion efficiency can reach 30%, the whole power consumption less than 500W, is 1/10 of a lamp pumped solid laser marking machine.
3.Laser without any maintenance, also not need adjusting or cleaning the lens.
4.Using laser diode as the pumping source, the average working time is up to 100000 hours.
5.Processing speed is 2-3 times than the traditional laser marking machine.
Company Information
Introduction:
Changzhou Huazu Optics & Electrics Technology co.,Ltd is located nearby Shanghai,China.It takes 1 hour to drive From Shanghai to Changzhou .And there is an Airport in Changzhou City.In order to meet the machines used for the automatic fabrication of light letters: Marking Machine ,Bending Machine, welding machine, Cutting Machine etc.
Our Services
Services:
1.We will enclose an "Instruction Book", "Operation Manual" and "Training Video" (in English version) to you, which is easily understood and handle by the customer.
2.The guarantee period of quality shall be 12 months counting from the date on which the commodity arrives at the port of destination.
3.Except the artificial damage and wearing parts, we are responsible for offering the fittings free of charge during the guarantee period, but you must send the damaged fittings to us by courier with your charge before we send back the alternative fittings to you.
4.After the guarantee of quality period, the parts required to repair or change, if any, shall be paid.
5.All inquires will be replied within 8hours. 7D/24H service. Please feel free to contact us with email or TM.
