- Place of Origin: Jiangsu, China
- Brand Name: huazu
- Model Number: HZ-DL200
- :
- :
- :
- :
- :
- :
- :
- :
- :

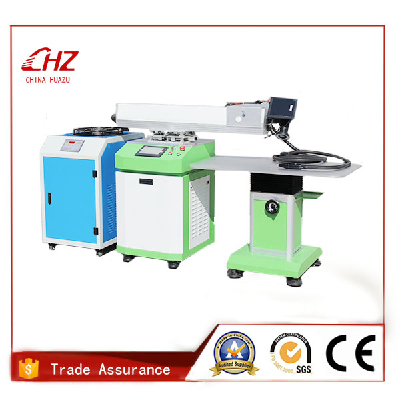

Asian Hand Gun Portable PlasticLaser Welding Machine
Product Description

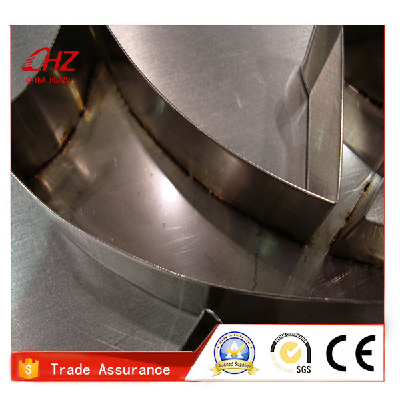

Applied for the welding of various metal letters, LED illuminated letters, customized metal signage, and exterior billboards.
Advantages:
1.Red light fast positioning, CCD display, microscope optional
2.Adjustable working table allows welding from small size to big size of work piece
3.Fast working speed; professional jig ensures the focus fixed and makes welding easier without using CCD or microscope
4.Slight distortion and affect by heating.
5.Capable of partial heating process.
6.Able to deal with complex, profiled, or tiny letters.
7.Low noise and no pollution.
8.Ultrafine positioning rod makes the welding of tiny corner easier without changing spot position
New metal processing technology brings higher quality.
Main Technical Data:
Name | Asian Hand Gun Portable Plastic Laser Welding Machine |
Bench Stroke | Working area 750*1000 |
Bearing of bench | ≤200KG |
Power supply | 220V±10%/50/60Hz 380V±10%/50/60Hz |
Laser type | Pulsed Nd:YAG (xenon lamp) |
Light spot | 0.1-0.3mm |
Size of light spot | 0.2-3.0mm |
Laser wavelength | 1064nm |
Pulse width | ≤15ms |
Max laser power | 200W |
Pulse frequency | ≤50Hz |
Laser output | 200mm |
Laser cooling | Water cooling |
Observation | CCD( microscope for option) |
Packge details | 1520 x 950 x 1490mm 585 x 490 x 980mm |
Our Services
After-sales Service:
1.We can provide train in our factory.
2.All enquires will be replied within 8hours. 7D/24H service. Please feel free to contact us with email or TM
3. All the machine will be tested and adjusted before shipping. You can operate it directly.
4. Strong technical team and Professional sales.
5. 12months warranty, we are responsible for offering the fittings free of charge during the guarantee period.
6. After the guarantee of quality period, the parts required to repair or change shall be paid.
Company Information
Highly Specialized Technology:
Changzhou Huazu Optics & Electronics Tech Co., Ltd.
1.Convenient Transportation: Our company is located in Changzhou which is near Shanghai, and our city has its own airport. It takes only 1 hour for you to take the high speed train from Shanghai to Changzhou.
2.Professional Technical Team: Our company has its technical department, sales departments and marketing department. We also have our own exhibition hall.
FAQ
Please let us know the follow information when enquiring:
1.What material do you need to weld ?
2.What is the size and thickness of the material?
3.What is your business industry?
We will suggest you the suitable model and specification.
- Place of Origin: Jiangsu, China
- Brand Name: huazu
- Model Number: HZ-DL200
- :
- :
- :
- :
- :
- :
- :
- :
- :
Main Technical Data:
Name | Asian Hand Gun Portable Plastic Laser Welding Machine |
Bench Stroke | Working area 750*1000 |
Bearing of bench | ≤200KG |
Power supply | 220V±10%/50/60Hz 380V±10%/50/60Hz |
Laser type | Pulsed Nd:YAG (xenon lamp) |
Light spot | 0.1-0.3mm |
Size of light spot | 0.2-3.0mm |
Laser wavelength | 1064nm |
Pulse width | ≤15ms |
Max laser power | 200W |
Pulse frequency | ≤50Hz |
Laser output | 200mm |
Laser cooling | Water cooling |
Observation | CCD( microscope for option) |
Packge details | 1520 x 950 x 1490mm 585 x 490 x 980mm |
